PTO Shaft Emergency Pumps / Three-Point Mountings / Suitable For Any Terrain
Even suitable for rough terrain
Mobile pumps are often required for terrain which is difficult to access. Accuvon PTO shaft pumps are very well suited for this purpose.

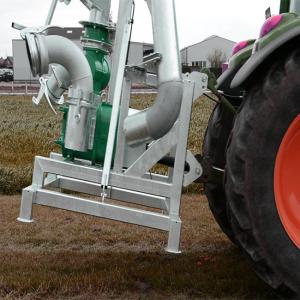

By means of the standardized three-point mounting, the pump (at the front or rear) can be attached to a Unimog or a tractor, lifted and transported to the installation site. The pump is driven by means of the PTO shaft of the vehicle at the operation site.
The Accuvon PTO shaft pump can be handled very easily. After the PTO shaft and hoses have been connected, the pump is immediately ready for use and conveys absolutely independently from the power supply.
Options
The pump speed and flow rate can be simply and appropriately regulated via the speed of the PTO shaft. Pumps with flow rates of up to 15,000 l/min can be used for this mobile version.
The three-point hitch frame pump is usually driven via the PTO shaft of a tractor. The mobile pump can be equipped with an additional electric motor upon request. This means that the right drive option can be selected for each application site.
| 1 | The number of suction and pressure connections is freely selectable. |
| 2 | The pump can be equipped with control technology. Made by Accuvon upon request. |
| 3 | Each mobile pump is designed and manufactured individually. This allows for the integration of accessories such as a toolbox or a large stone trap in the unit. |
Benefits
High pump performance without an integrated drive
The pump on a three-point mounting is highly flexible to use. An integrated drive is not required for this powerful pump. The rotary lobe pump is simply attached to the PTO shaft of a vehicle.
Benefits at a glance
| easy to transport | The pump can simply be attached to the three-point mounting of a vehicle and transported to the application site. |
| suitable for any terrain | Sufficient ground and off-road clearance is also provided to be able to drive through flooded or difficult terrain. |
| ready for use right away | The pumps are ready for use right away − connect the hoses and start the drive. |
| compact and powerful | Despite their compact size, the pumps are very powerful. |
| customized design | Each mobile unit is configured and built individually. |
| user-friendly | The pumps are very easy to operate. |
| very easy to maintain | The pump can be maintained within a few minutes at any given location. |
Features of Accuvon Rotary Lobe Pumps:
1.Self-priming, Valve-less, Positive Displacement Pump
2. Easy Maintenance through Front Cover
3. Controllable Flow, Ratio up to 1 : 5
4. Capacity of up to 4000 m³/h
5.Pressures of up to 25 bar
6. Dry-running Capability
7.Reversibility, same pump output for both directions
8. Gentle, Low-Pulsation Pumping
9.For Viscous, Solid, Abrasive or Shea-sensitive Mediums
10. Low Parts Replacement Costs
Components of a Accuvon Rotary Lobe Pump
1 Timing gear
2 Quench and control chamber
3 Casing in block design
4 Unwetted shaft
5 Axial and radial casing protection
6 Shaft seal
7 Rotors
8 Quick-release cover
